Type III Split Fastening Systems Supplier for Xian Metro Line 15
May 15, 2024
Xi'an Metro Line 15 is a subway line under construction in Xi'an Metro. It is located in Xi'an City, Shaanxi Province, China. The first phase of construction started on September 29, 2020, and is expected to be opened in 2025. Operations, its signature color is pink.
The first phase of Xi'an Metro Line 15 runs in an east-west direction, starting from Xiliu Station in the west and ending at Hanjiawan Station in the east. It is a backbone line that runs through the southern part of the main urban area of Xi'an. This line connects Chang'an District, Xi'an High-tech Zone, and Xi'an National Civil aerospace industry base, three areas. After the line is completed and put into operation, it will greatly shorten the spatial distance between Chang'an University Town and adjacent industrial parks and urban areas, and is of great significance to promoting scientific and technological education, cultural tourism and rapid development in southern Xi'an.
The first phase of Xi'an Metro Line 15 has a total length of 19.468 km, all underground lines, with a total of 13 stations, and interchanges with the already operating Lines 2, 4, and 6. The line is planned to use A-type 6 electric buses, equipped with fully automatic driving technology, with a maximum operating speed of 100 kilometers per hour.

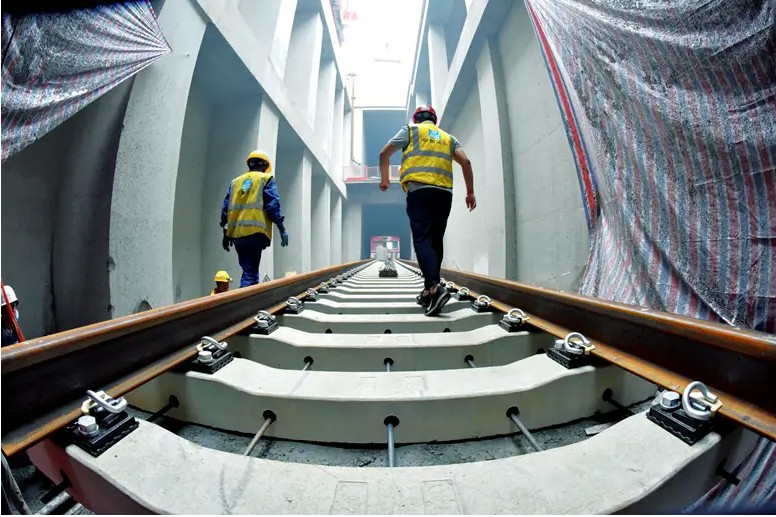

In 2024, Anyang Railway Equipment Co., Ltd(AT). provided 38,460 sets of Type III split fastening systems to the first phase of Xi'an Metro Line 15.
![Type III Split Fastening Systems Manufacturer for Xi'an Metro Line 15](/d/images/type-iii-split-fastening-systems-manufacturer-for--xian-metro-line-15.jpg)
The first phase of Xi'an Metro Line 15 runs in an east-west direction, starting from Xiliu Station in the west and ending at Hanjiawan Station in the east. It is a backbone line that runs through the southern part of the main urban area of Xi'an. This line connects Chang'an District, Xi'an High-tech Zone, and Xi'an National Civil aerospace industry base, three areas. After the line is completed and put into operation, it will greatly shorten the spatial distance between Chang'an University Town and adjacent industrial parks and urban areas, and is of great significance to promoting scientific and technological education, cultural tourism and rapid development in southern Xi'an.
The first phase of Xi'an Metro Line 15 has a total length of 19.468 km, all underground lines, with a total of 13 stations, and interchanges with the already operating Lines 2, 4, and 6. The line is planned to use A-type 6 electric buses, equipped with fully automatic driving technology, with a maximum operating speed of 100 kilometers per hour.
In 2024, Anyang Railway Equipment Co., Ltd(AT). provided 38,460 sets of Type III split fastening systems to the first phase of Xi'an Metro Line 15.
Fastening Systems | Drawing | Product | Qty(pcs) | Material |
Type III split fastening systems | 1510300-S-GD-01-110 | Rubber Pad | 38460 | Thermoplastic Polyester Elastomer |
1510300-S-GD-01-106 | Insulator | 76920 | PA66 | |
Special Line 3328-3-I-3 | Type III Rail Clip | 76920 | 60Si2MN | |
1510300-S-GD-01-108 | Anchor Bolt | 76920 | 45# | |
GB95 | Flat Washer 30 | 76920 | Q235-A | |
GB7244 | Heavy Duty Spring Washer 30 | 76920 | 60Si2MN | |
1510300-S-GD-01-105 | Adjustable Gauge Clamp | 76920 | QT450-10 | |
1510300-S-GD-01-104 | Steel Baseplate | 38460 | QT450-10 | |
1510300-S-GD-01-111 | Rubber Pad Under Baseplate | 38460 | Thermoplastic Polyester Elastomer | |
1510300-S-GD-01-112 | Height Adjustable Pad Under Baseplate | / | Rubber Composite Elastomer |
