84,091 sets of Fastening Systems for Tianshui Tram Demonstration Line

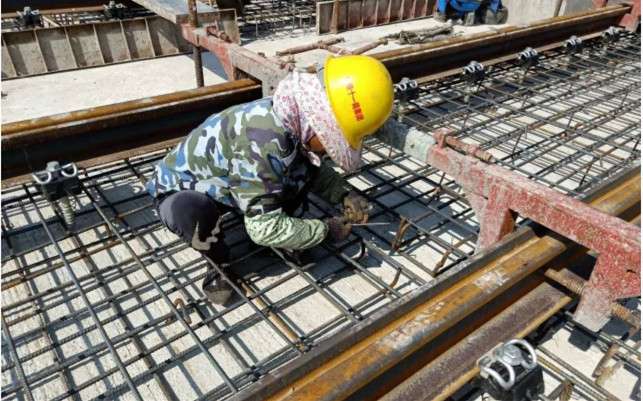

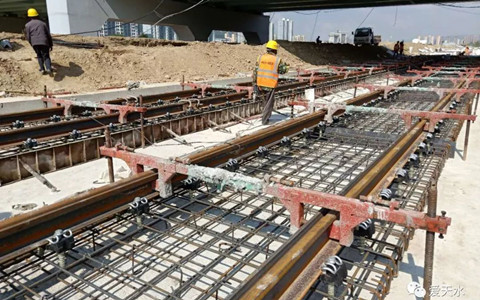

Tianshui City Tram Demonstration Line (Phase II) PPP West Extension Project, the line starts from Tianshui No. 3 Middle School in the west and ends at Shaw Middle School Station. It mainly includes roadbed and ancillary works, bridge works, track works, parking complex station buildings, station works, etc., as well as corresponding water supply and drainage, fire protection, greening and other supporting projects, with a construction period of about 2 years.
In 2023-2024, Anyang Railway Equipment Co., Ltd. will provide 54178 sets of WY-3 type fastening system, 26360 sets of WY-4 type fastening system, 1668 sets of WYZ-1 type fastening system and 1885 sets of Typ I Fastening System to Tianshui Tram Demonstration Line (Phase II).


Products	Specification	Unit	Qty
Fastening System	WY-3 Fastening System(ground segment)	sets	54178
Fastening System	WY-4 Fastening System(elevated section segment)	sets	26360
Fastening System	WYZ-1 Fastening System	sets	1668
Fastening System	Type I fastening system	sets	1885

WY-3 Fastening System（ground segment）（The Qty for each railway sleeper）

No.	Products	Specification	Unit	Qty	Remark
1	Screw Spike	L=210；20MnTiB	Pcs	2	When adjusting the height, select another specification according to the amount of height adjustment
2	Flat Washer	Φ25；Q235A	Pcs	2
3	Type II Rail Clip	Φ13；60Si2Cr	Pcs	2
4	Gauge Block	10#（Inside） PA66GF	Pcs	1	Normally use 8# and 10#, if you need to adjust the gauge, use the special number as shown in the gauge adjustment table
		8#（Outside） PA66GF	Pcs	1
5	Elastic Pad	Height-adjustment pad under tie plate	Pcs	1
6	Baseplate	PA66GF	Pcs	1
7	Plastic Dowel	L=145mm PA66GF	Pcs	2
8	Height-adjustment pad under tie plate	HDPE	Pcs	As demand
9	Height-adjustment pad under tie plate	Plastic	Pcs	As demand
10	Fastening System Cover	PA66GF	Pcs	2

WY-4 Fastening System（The Qty for each railway sleeper）

No.	Products	Specification	Unit	Qty	Remark
1	Screw Spike	L=200mm; 20MnTiB	Pcs	2	When adjusting the height, select another specification according to the amount of height adjustment
2	Flat Washer	TB/T 1495.2; Q235A	Pcs	2
3	Type II Rail Clip	TB/T 3065.2；60Si2Cr	Pcs	2
4	Constant resistance gauge block	10#(Inside); PA66GF	Pcs	1	The constant resistance gauge block is selected for the constant resistance section, Small resistance gauge blocks are selected for small resistance sections; Normally use 8# and 10#, if necessary adjust the rail Gauge, select the special number as shown in the gauge adjustment table
		8#(Outside); PA66GF	Pcs	1
	Small resistance gauge block	10#(Inside); PA66GF	Pcs	1
		8#(Outside); PA66GF	Pcs	1
5	Elastic pad under rail	H=10mm; Neoprene	Pcs	1	Elastic backing plates under the rails are used for constant resistance areas. Composite backing plate under the rail is used in the small resistance area
	Elastic pad under rail	H=10mm; TEH+Polymer wear-resistant material	Pcs	1
6	Metal base plate	H=18mm; QT450-10	Pcs	1
7	Insulation cushion plate	H=5mm; HDPE	Pcs	2
8	Plastic dowel	L=145mm; PA66GF	Pcs	2
9	Height-adjustment pad under tie plate	HDPE	Pcs	As demand	According to the adjustment demand matching
10	Height-adjustment pad under tie plate	Plastic	Pcs	As demand	According to the adjustment demand matching

WYZ-1 Fastening System   （The Qty for each railway sleeper）

No.	Products	Specification	Unit	Qty
1	Screw Spike S1	Grade 8.8 high-quality carbon structural steel	Pcs	2
	Screw Spike S2	Grade 8.8 high-quality carbon structural steel	Pcs
2	Flat Washer 24	0235-A	Pcs	2
3	Type A Rail Clip	60Si2Yh	Pcs	2
4	Insulated gauge block	Glass fiber reinforced polyamide 66	Pcs	2
5	Steel Plate	QT450-10	Pcs	1
6	Square eccentric block	QT450-10	Pcs	2
7	Plastic Dowel D1	Glass fiber reinforced polyamide 66	Pcs	2
8	Rail Pad 50-10-190		Pcs	1
9	Height adjustment pad under rail	polyethylene	Pcs	As demand
10	Height adjustment pad under tie plate	polyethylene	Pcs	As demand
11	Insulation cushion plate	plastic	Pcs	1

Description: 1. WYZ-1 type fastening system, suitable for 50kg/m rail integral ballast track.
2. The main performance and technical parameters of fastening systems:
(1) Rail bottom slope: 1:40 rail bottom slope is set on the iron tie plate;
(2) Rail longitudinal resistance: greater than 9kN;
(3) Assembly fastening force: the fastening force of the fastener assembly should not be less than 18kN;
(4) Insulation resistance>10³0;
(5) The left and right position adjustment of the steel rail: the left and right position adjustment of the single copper rail: -8~+6mm; the gauge adjustment: -16~+12mm, and the adjustment step is 2m.
(6) Rail height adjustment amount: 40mm, the adjustment level is 1mm;
(7) Pullout resistance of embedded casing: not less than 60kN.
   3. The fastener manufacturing acceptance meets the requirements of the technical specification.

Type I Fastening System  （The Qty for each railway sleeper）

No.	Products	Qty		Material	Weight/Volume		Standard
		Intermediate	Joint		Intermediate	Joint
1	Screw Spike	4		Q235-A	2.376 kg		TB/T 1495
2	Nut(M24)	4		9235-A	0.448 kg		TB/T 1495
3	Flat Washer	4		Q235-A	0.276 kg		TB/T 1495
4	Type A Rail Clip( Type I)	4	2	605i2Mn	1.920 kg	0.960 kg	TB/T 1495
	Type B Rail Clip( Type I)	-	2	60Si2Mn	-	0.940 kg	TB/T 1495
5	Intermediate gauge block	2 pcs for 14#, 2 pcs for 20#	-	Q235-A	2.896 kg	-	TB/T 1495
	Joint gauge block	-	2 pcs for 14#, 2 pcs for 20#	Q235-A	-	2.634 kg	TB/T 1495
6	Baffle seat	4		Polyamide 6	2-4号；156.8 cm²    0-6号：164.8 cm³		TB/T 1495
7	Rail pad	2		rubber	50-10-190:479  cm²    50-10-185;466   cm³		TB/T 1495
8	Height adjustment pad under rail			Polyethylene, bamboo, natural material	21.5 cm'/mm		TB/T 1495
