Introduction

Anyang Railway Equipment Co., Ltd is able to provide customers with all kinds of fishplates by different standards, such as Chinese standard railway fishplate, Arema standard railway fishplate, BS Standard Railway Fish Plate, DIN Standard Railway Fish Plate, South America Standard Railway Fish Plate, UIC Standard Railway. Fish Plate, African standard railway fishplate, etc Anyang Railway Equipment Co., Ltd is a professional manufacturer and supplier to provide different kinds of fish plates with round or oval holes, 4 holes 24'' or 6 holes 36'' such as common fish plates, bulged fishplates(Joggled fish plates), etc.
Anyang Railway Equipment Co., Ltd produces standard 100-8, 115-119RE, 132-136-141RE, 133RE Joint Bars, etc.

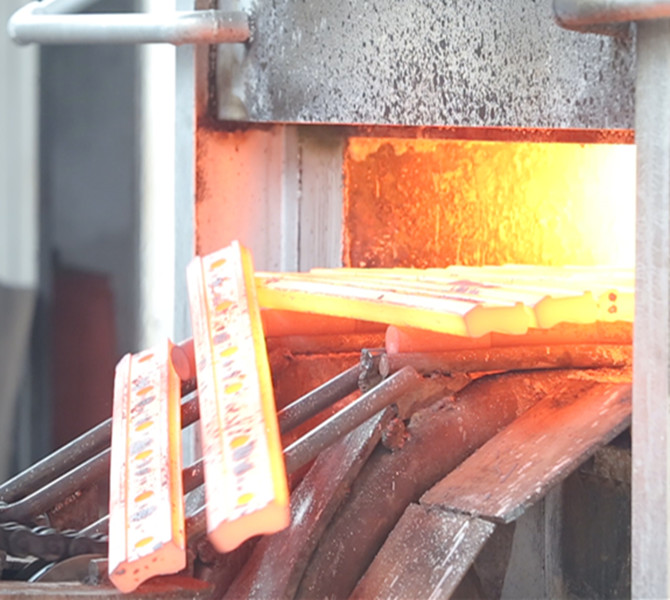

The section steel for fishplate is made by Anyang Railway Equipment Co., Ltd, the fishplate production line produces all kinds of fishplates with four holes and six holes, such as standard fish plates, high-strength fishplates, compromise fishplates, frozen fishplates, insulating fish plates, bonded fishplates , insulating bonded fishplate, joggled fishplate. The maximum production output is 120 t/day.

Technical Features

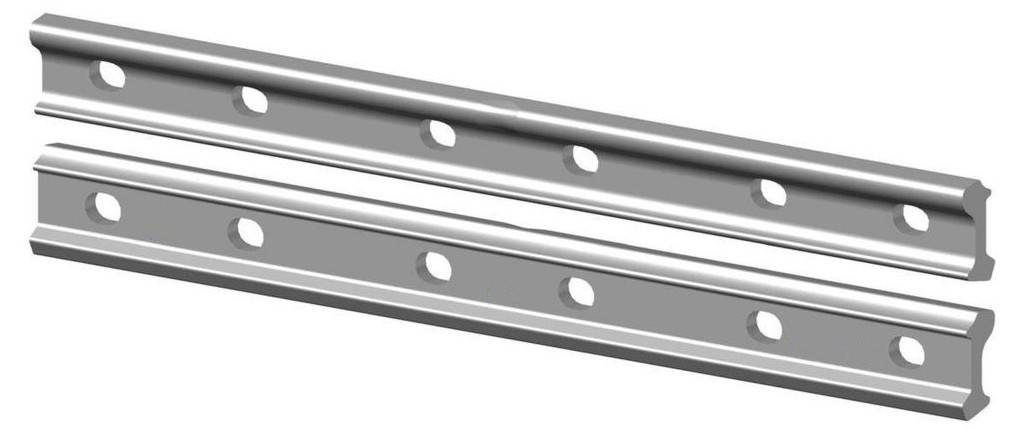

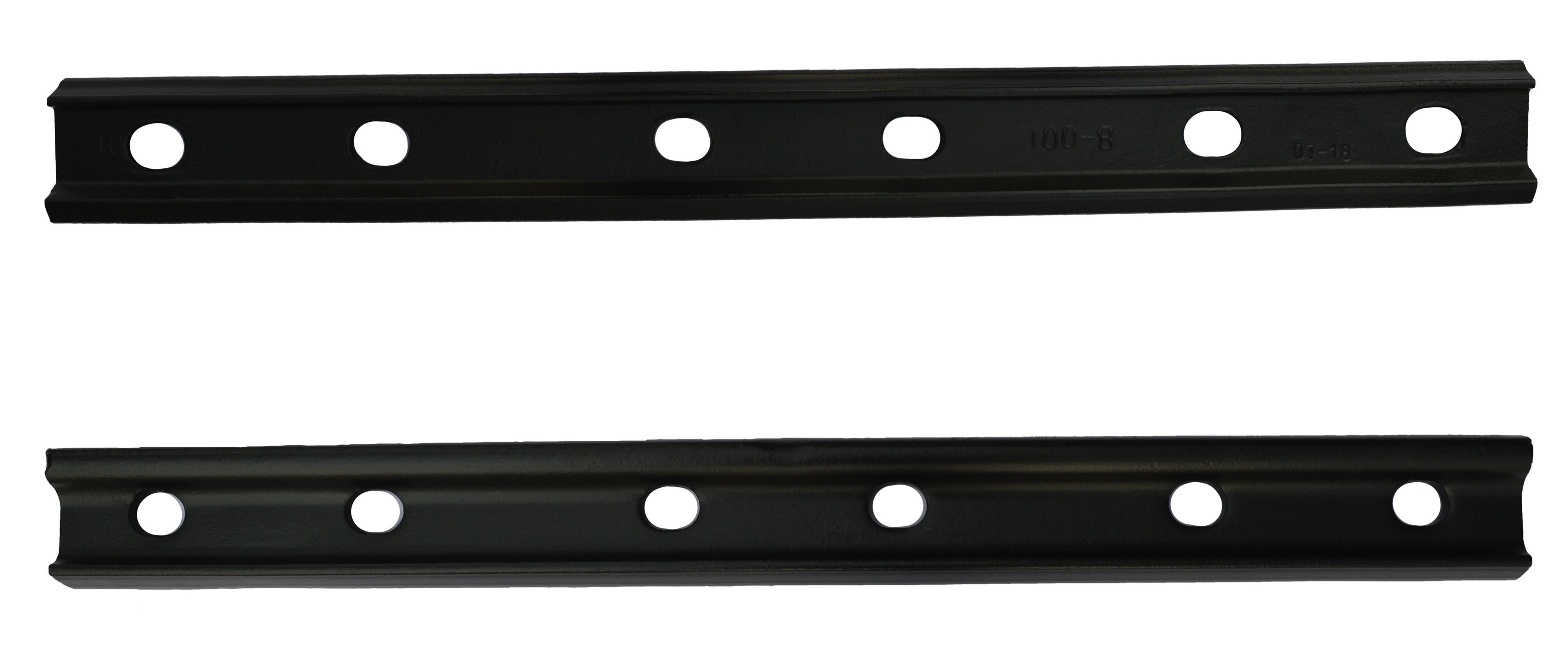

1. 100-8 Rail Joint Bar(standard 100-8 rail fishplate with 6 holes)

2. 100-8 Rail Joint Bar(standard 100-8 rail fishplate with 6 holes)

3. 100-8 Rail Joint Bar(standard 100-8 rail fishplate with 6 holes)

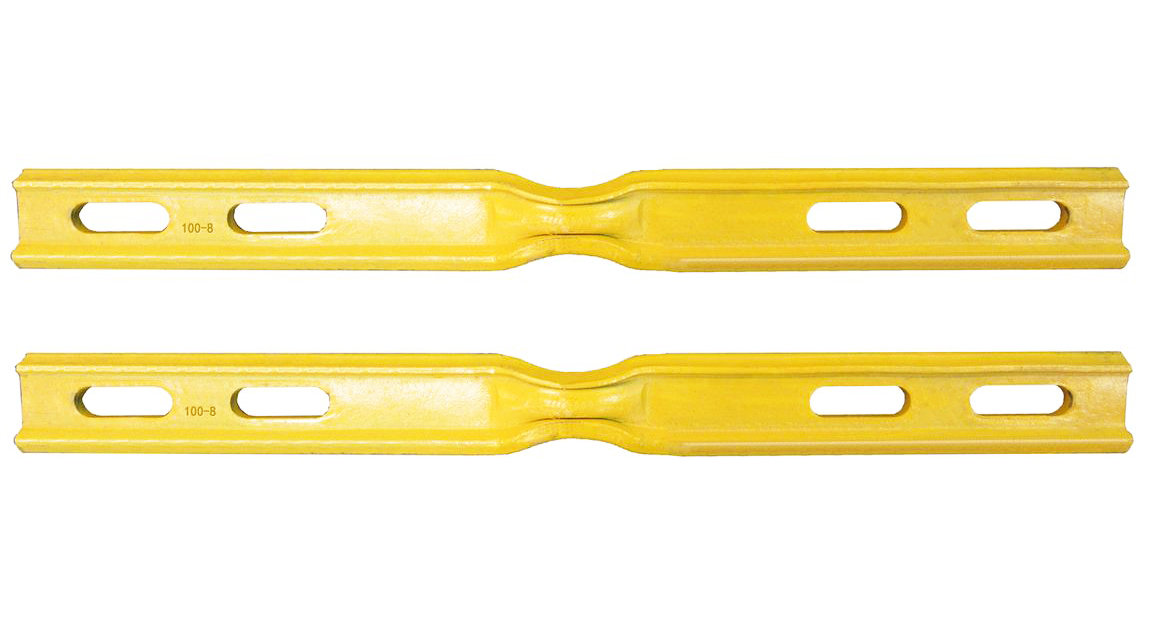

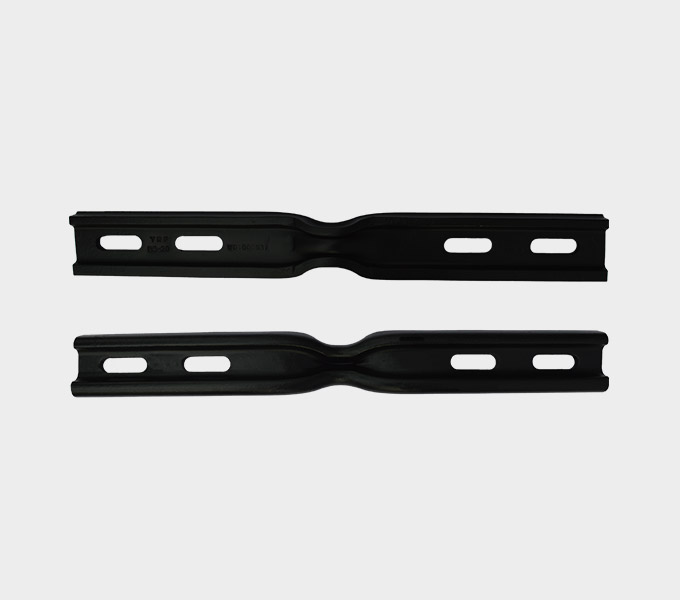

4. 100-8 Weld Repair Joint Bar(joggoled fishplate, expansion fishplate, bulge rail joint bar)
100-8 Weld Repair Joint Bar is a specially forged fishplate. It is suitable for the temporary repair of cracked welded rail joints with clamp assembly to suit various rail sections. Used as an emergency clamp, 100-8 Weld Repair Joint Bar enables quick and temporary repair, allowing continued movements through the section at a reduced line speed.

With over two decades of dedication and experience, Anyang Railway Equipment Co., Ltd is able to provide customers with all kinds of fishplates by different standards, such as Chinese standard railway fish plate, Arema standard railway fishplate, BS Standard Railway Fish Plate, DIN Standard Railway Fish Plate, South America Standard Railway Fish Plate, UIC Standard Railway Fish Plate, African standard railway fish plate, etc
Anyang Railway Equipment Co., Ltd is a professional manufacturer and supplier to provide different kinds of joint bars with round or oval holes, 4 holes 24'' or 6 holes 36'' such as 43-75kg common joint bars, 43-75kg insulated joint bars, bulged joint bars(Joggled fish plates), compromise joint bars, damper joint bars, and glued insulated joint bars, etc.
Anyang Railway Equipment Co., Ltd also can supply special rail joint, such as thermit Welded Joints.

100-8 Weld Repair Joint Bar (Expansion Fishplate)
