Home > Products > Railway Fastening Products > Rail Clips

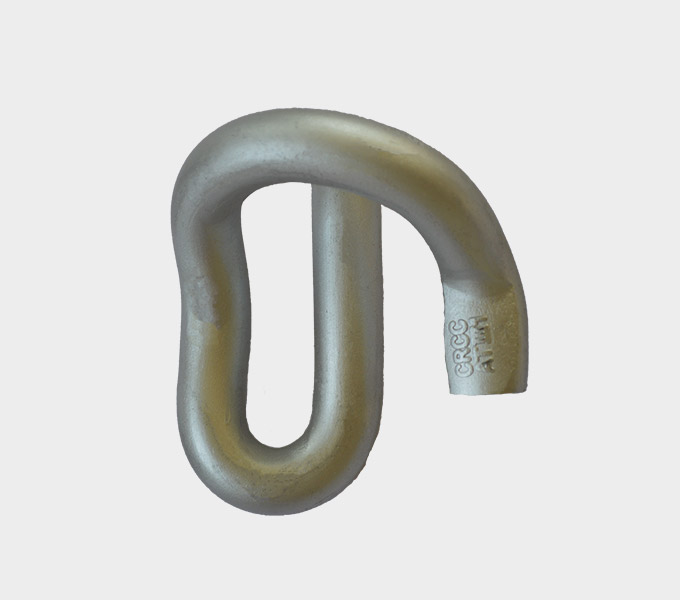

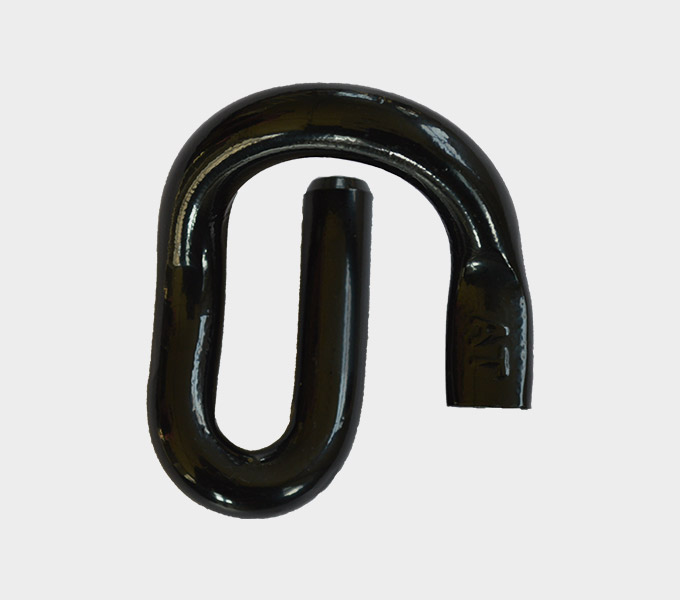

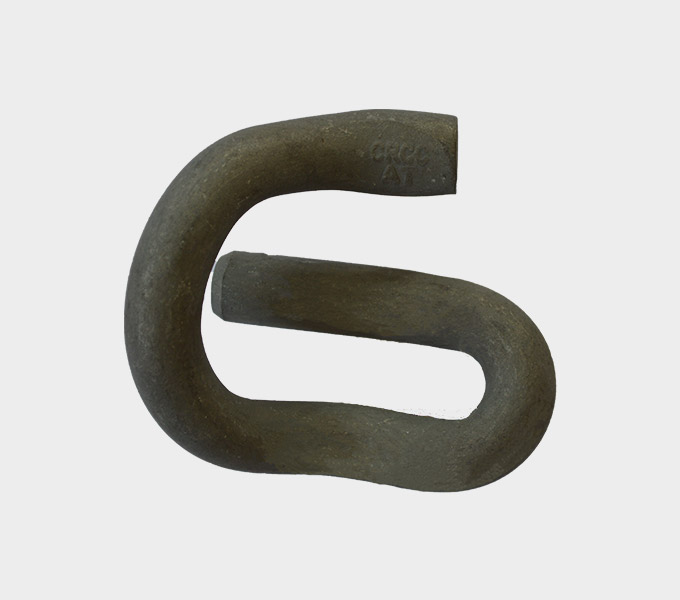

Type III Rail Clip for Fastening System

Send Email
Chat Now
Share:
Introduction
Technical Support
Tags
Related Projects
Related Products
Introduction

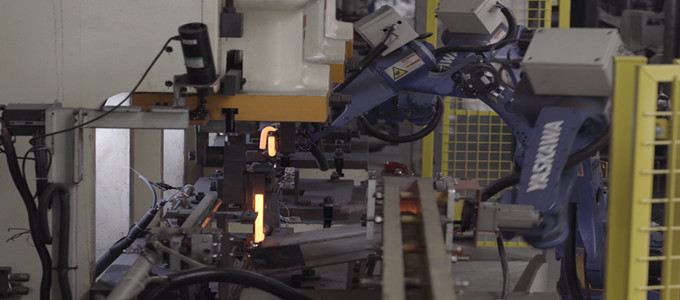

Anyang Railway Equipment Co., Ltd(AT) has 8 automatic rail clip production lines, realize the automatic loading, hot forming, and heat treatment of rail clips, the maximum output is 120,000 Pcs/day.
Anyang Railway Equipment Co., Ltd is professional manufacturer and supplier of Type III Rail Elastsic Clip for railway fastening systems.
Technical Support
Item Type III Rail Elastic Clips
Diameter φ18
Weight 0.80kg/pc
Material 60Si2MnA
Hardness 44-48HRC
Buckle Pressure ＞11KN
Working Deformation 13mm
Fastening Method without bolt fastening

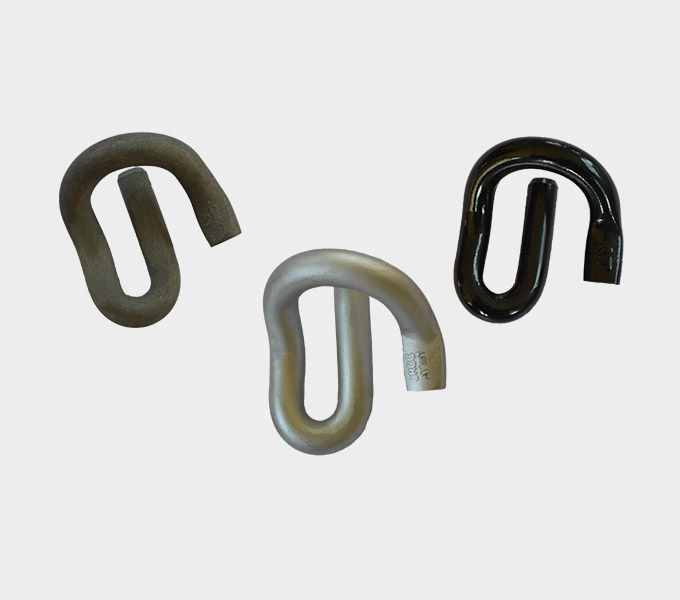

Surface Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating, Color Painting
Package Moven Bag, Pallet
Delivery Depends on order

Anyang Railway Equipment Co., Ltd(AT) is professional manufacturer and supplier of railway fastening systems, with clip I, clip II and clip III as our most popular products, we also offer other types spring clips like E-type clips, high speed railway clips, SKL rail clips, Russia rail clips, Fast Clips, Korea clips, Deenik clips, Nabla spring blade, etc.

China Track Clip, Elastic Clip, Spring Clips, Tension Clips Manufacturer - Anyang Railway Equipment Co., Ltd

Rail Clips, Spring Clips, Tension Clip, Elastic Clips Factory - Anyang Railway Equipment Co., Ltd
China Railway Tension Clamps, e- Clips, Rail Clips, Clip Fasteners Factory - Anyang Railway Equipment
