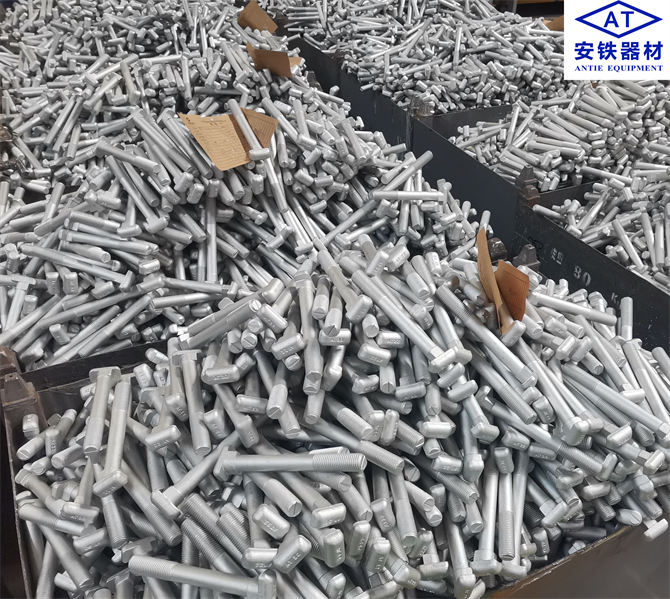

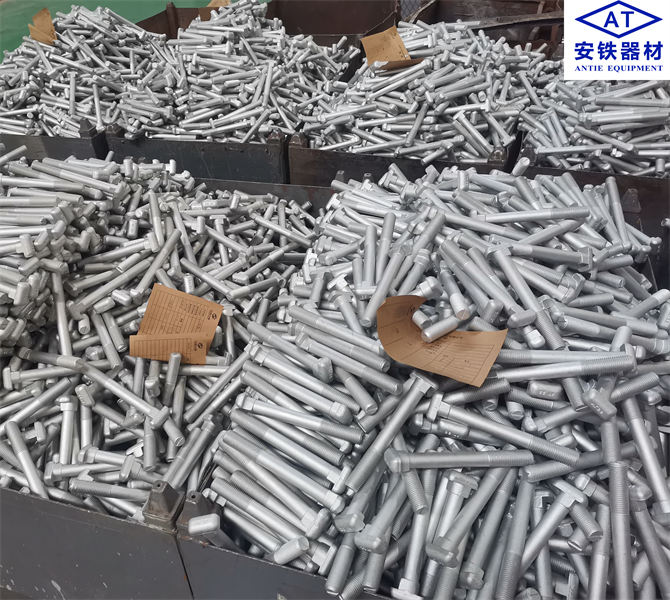

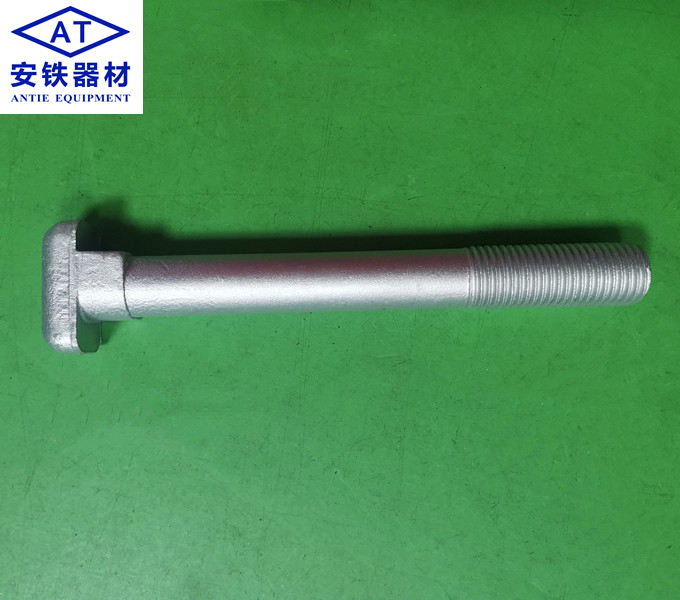

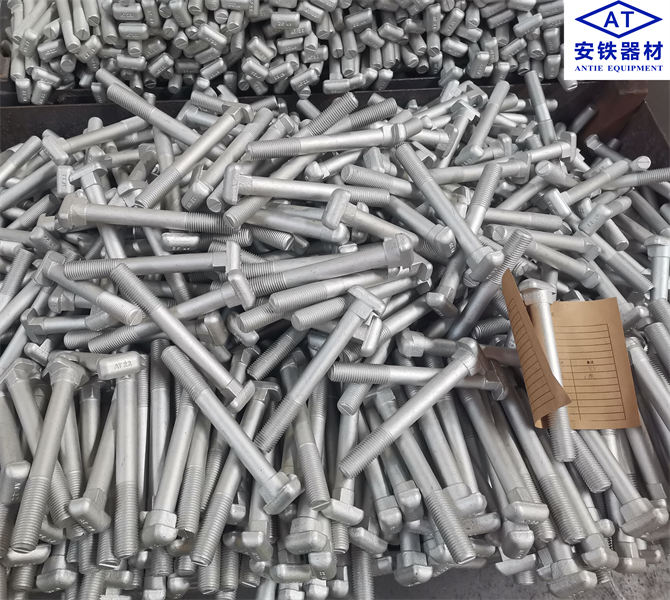

T-Anchor Bolts, Toggle Anchor Bolts from China Manufacturer

Introduction

Railway rail bolts also called railway track bolts, railroad rail bolts, railroad track bolts.
Railway rail bolts are used to fasten rail ends together at a joint, which has different types are widely used for different functions, such as anchor bolts, clamp bolts, clip bolts etc. Generally, railway rail bolts are forgings.

Technical Support

Product	Rail Bolts / Track Bolts
Raw Material	Alloy Steel 40Cr, 42CrMo, 35CrMo; Steel Q235, C35, C45
Grade	3.6/4.6/4.8/5.6/5.8/6.8/8.8/10.9/12.9
Surface	Plain, Oxide Black, Dacromet, or other upon requirements
Standards	UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, GB, VALEC, GOSTR- EASC, GB/T or other upon requirements
Weight	Depend on different models
Dimension	Depend on different models
Package	Moven bag, Box or other upon requirements
Delivery	Depends on order

Anyang Railway Equipment Co., Ltd(AT) provides various types of track bolts and widely used for railway construction, such as Anchor bolts, T-head bolts, Clip bolts, Clamp bolts, Button head oval neck track bolts, Diamond neck track bolts, Fish bolts, and inserted bolts, and other special bolts, etc.

Anchor bolts are black oxidized, zinc galvanized, hot-dipped galvanized, or Dacromate.

The popular models of track anchor bolts are M18, M20, and M24.

The performance grades of track bolts are divided into more than 10 grades such as 3.6, 4.6, 4.8, 5.6, 6.8, 8.8, 9.8, 10.9, 12.9, among which track bolts of grade 8.8 and above are made of low-carbon alloy steel or medium-carbon steel and are heat-treated (quenched, tempered), commonly known as high-strength bolts, and the rest are commonly known as ordinary bolts.

Anyang Railway Equipment Co., Ltd(AT) is able to provide various grades of track bolts, anchor bolts as per the customer's requirements.

China Rail Bolts, Track Bolts, Tunnel Blots, Anchor Bolts Manufacturer - Anyang Railway Equipment

Anyang Railway Equipment Co., Ltd can provide wide range of rail bolts with different diameters as well as different strength grade, Plain, Oxide Black, Dacromet or other requirements for the surface treatment are available.
As the leading manufacturer of railway rail fasteners and rail joint parts in China, Anyang Railway Equipment Co., Ltd(AT) produces and supplies various railway spikes and railway bolts such as screw spikes, dog spikes, track bolts, tunnel bolts, anchor bolts, joint bolts, guard rail bolts, and related nuts and washers, etc.
China Factory Track Bolts, Rail Bolts, Track Fasteners - High Quality (Anyang Railway Equipment)

China Factory Track Bolts, Rail Bolts, Track Fasteners - High Quality (Anyang Railway Equipment)

Rail Fasteners for New Pucheng-Meizhou Railroad Project

In 2019, Anyang Railway Equipment Co., Ltd(AT) provided Type I and Type II fastening system for New Pucheng-Meizhou Railroad Project

Railway Rail Fasteners for Xingguo-Quanzhou Railroad - Anyang Railway Equipment

Rail Fasteners for New Xingguo-Quanzhou Railroad Project

In 2019, Anyang Railway Equipment Co., Ltd(AT) provided rail fastening system for New Xingguo-Quanzhou Railroad Project

Fish Bolts (Track Bolts, Rail Joint Bolts)

Railway fish bolts are also called railway track joint bar bolts or railway rail fish plate bolts, which belong to fasteners for rail joint bars.

Chat Now

China Manufacturer Tunnel Segment Bolt, Railway Bolts - Anyang Railway Equipment

Curved Tunnel Bolts (Tunnel Segment Bolts)

A tunnel segment bolt is a kind of special fastener used to link and fasten segments of shield tunneling machines during tunnel excavation. Through this kind of bolt connection, severkal arched segments can be connected into a circle, thereby supporting the entire tunnel surface. During excavation, the ground settlement can be effectively controlled, the impact on the ground buildings can be reduced, and the construction underwater can be effectively controlled. When digging, it does not affect the characteristics of water surface traffic. This kind of fastened connection piece designed as a straight line or a certain arc is called a tunnel bolt or segment bolt.
