Gauge Apron Plate from China Manufacturer

Introduction

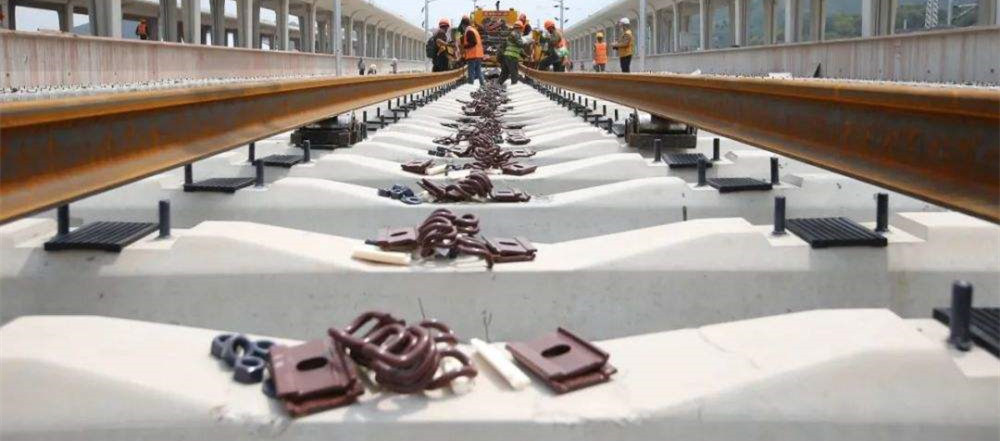

Gauge Apron Plate, also called rail gauge apron, rail baffle plate, railway rail clamp, mainly used in railway clamping fastening systems, which belong to rigid-type fasteners.
Gauge Apron Plate is one of the important components of the railway, Its function is to adjust the gauge and transmit the horizontal thrust of the rail.
The rail gauge apron is divided into joint gauge apron, intermediate gauge apron, height-adjusting gauge baffle and heavy-duty gauge apron.

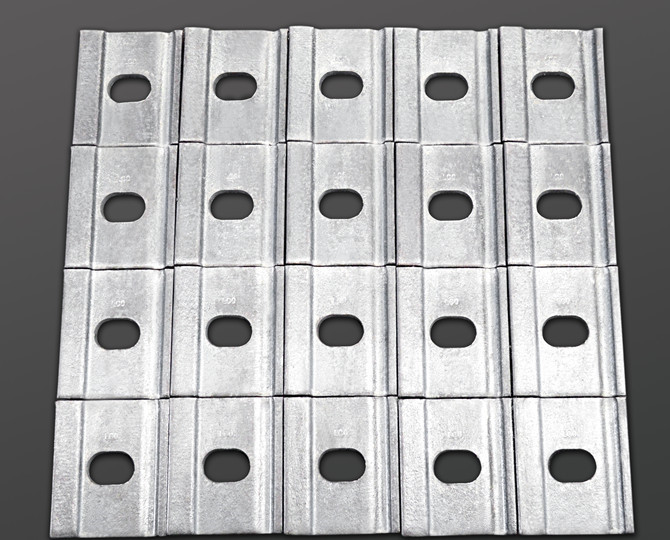

Anyang Railway Equipment Co., Ltd. provides gauge apron plate in Plain, Oxide Black, Sherardizing, Nitriding, Dacromet, Galvanized and Sherardizing Nnickel for customers to choose.

Technical Support

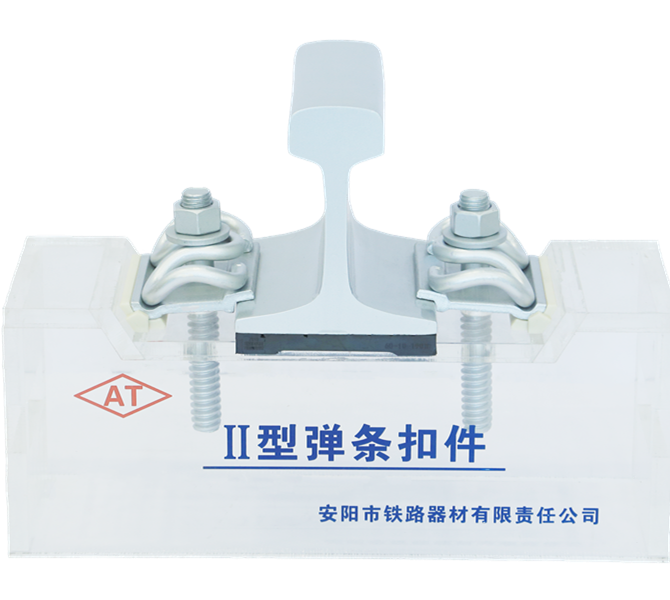

Gauge baffle plates(railway guide plates) are often used for Type-I and Type-II railway fastening systems to fix the connection between rails and sleepers. The raw materail for raiwlway guide plates is a kind of special-shaped section steel, which is produced by hot rolling method.

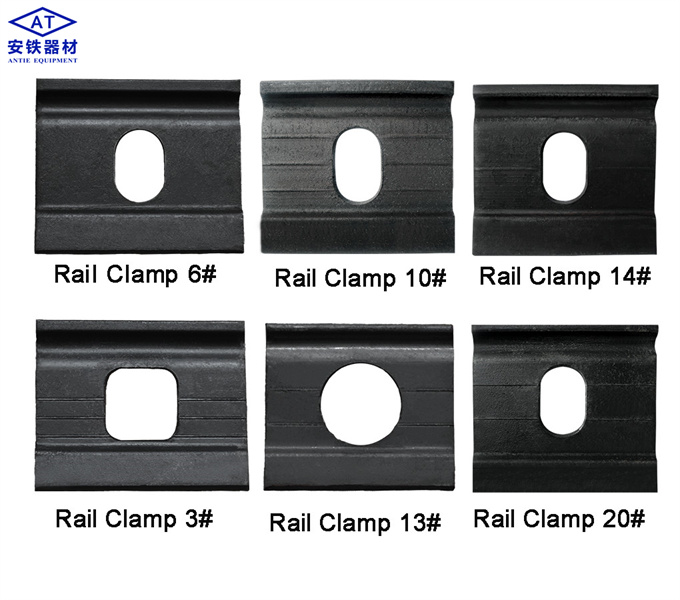

Railway Rail Guide Plates		Hole
Type-II Railway Fastening System	6#	Oblong hole
Type-II Railway Fastening System	10#	Oblong hole
Type-II Railway Fastening System	6#, 10#	Square hole
Type-II Railway Fastening System	3#	Square hole
Type-I Railway Fastening System	13#	Big round hole
Type-I Railway Fastening System	14#, 20#	Oblong hole
Type-I Railway Fastening System	14#, 20#	Big round hole
Type-VI Railway Fastening System	12#, 16#, 20#, 24#	Oblong hole
Type-III Railway Fastening System	6#	Square hole
Type-III Railway Fastening System	10#	Square hole

The implementation standard of gauge baffle steel is YB/T2010-2003.
The 6# and 10# guide plates follow TB/T3065-2020;
The 14# and 20# guide plates follow TB/T1495-2020. In addition, the standards are also implemented at the same time: Q/CR563, Q/CR564
The grade, chemical composition, tensile and cold bending properties of baffle steel shall comply with the requirements of Q235A and Q235B grade steel in GB/T 700 standard.

Material	Chemical composition/%, not more than					Tensile test, not less than			Cold bending test 180°, B=2a
Material	C	Mn	Si	S	P	ReH/ MPa	Rm/ MPa	A/%	Bending diameter d
Q235A	0.22	1.40	0.35	0.045	0.045	235	370～500	26	a (longitudinal)
Q235B	0.20	1.40	0.35	0.045	0.045	235	370～500	26	a (longitudinal)
Note: 1. In the cold bending test, B is the width of the sample, and a is the thickness of the steel. 2. YB/T 2010 stipulates that the sulfur content of Q235A steel is not more than 0.045% (GB/T 700 stipulates that the sulfur content of Q235A steel is not more than 0.050%).

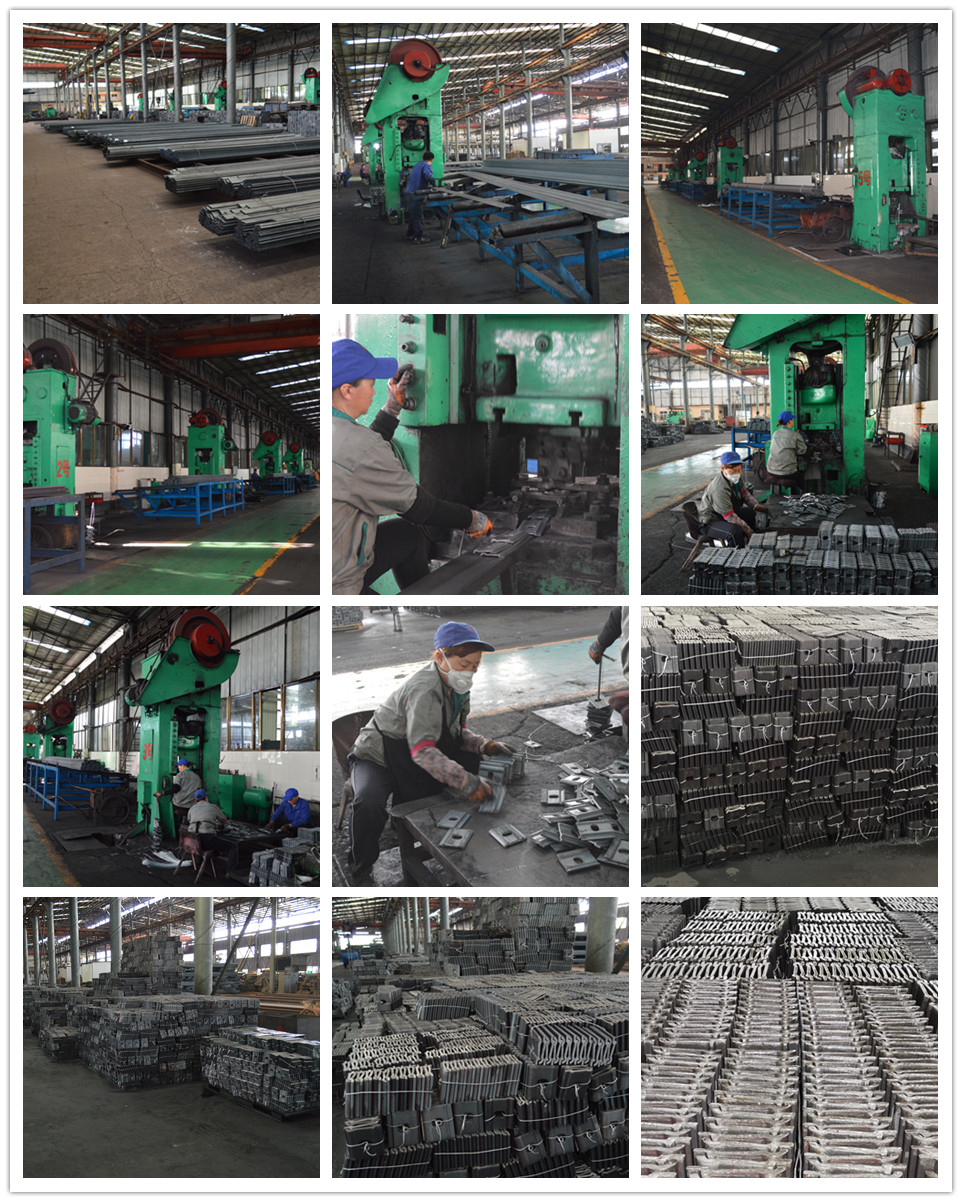

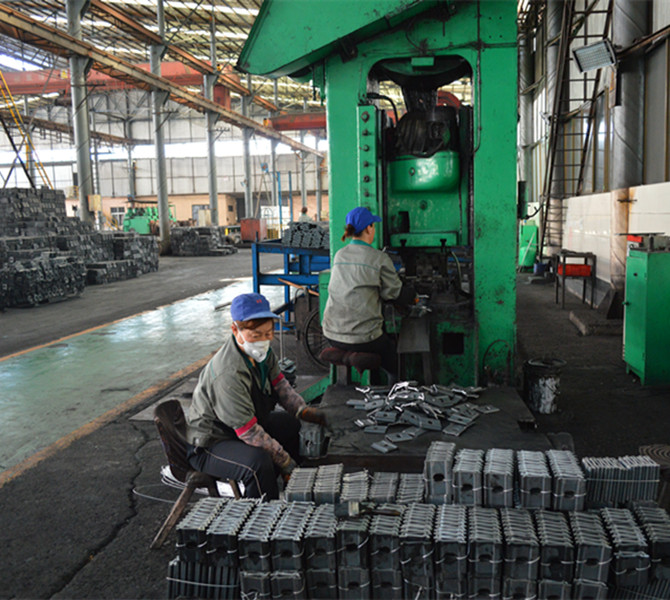

Anyang Railway Equipment Co., Ltd(AT) has 5 gauge plate production lines, the section steel of gauge plates are made of special-shaped section steel rolled by our steel rolling production line, and the rail clamps are hot rolled, the maximum output is 65 t/day.
China Railway Rail Gauge Apron Plate, Baffle Plate Factory- Anyang Railway Equipment

China Railway Rail Gauge Apron Plate, Baffle Plate Factory- Anyang Railway Equipment

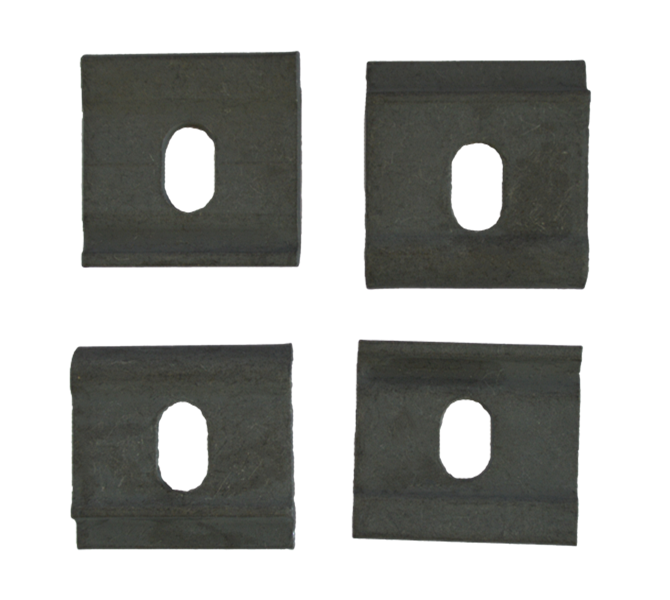

Gauge Apron Plate (Railway Rail Clamp)

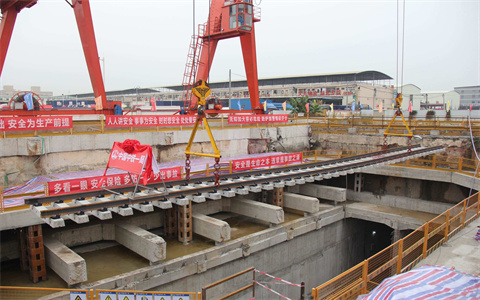

Rail Fastening Systems for Guangzhou Metro Line 8

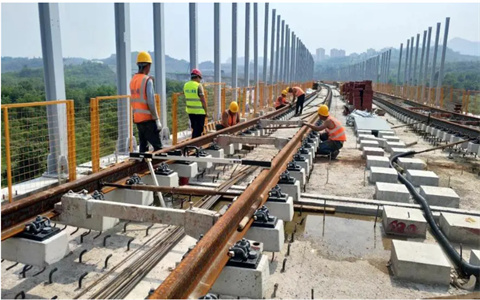

Track Fastening Systems for Chongqing Metro Line 6
