Compromise Rail Fishplates & Joggled Rail Fishplates

Rail Fishplates, also called rail joint bars, as connections at the track joints, widely used in railway industry with light rails, heavy rails and super heavy rails.

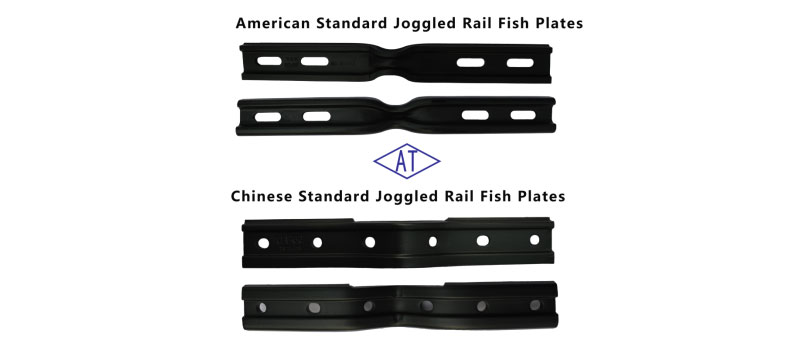

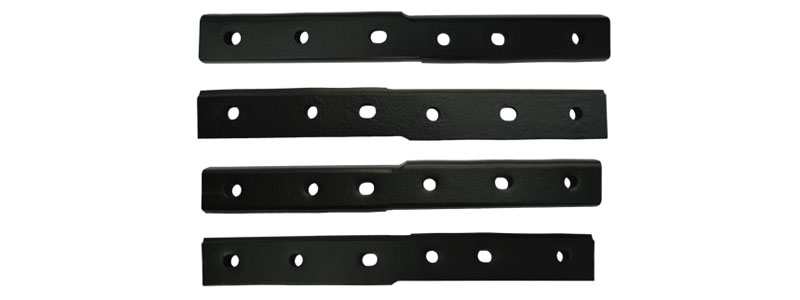

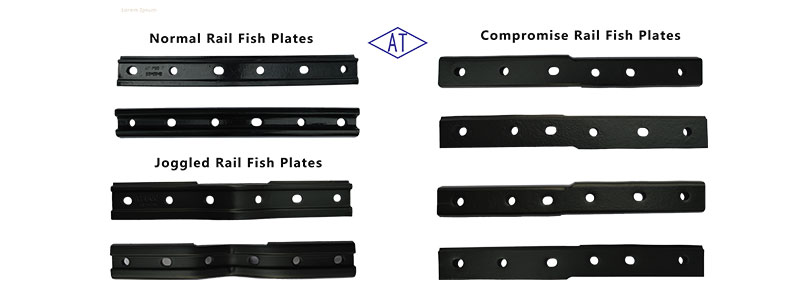

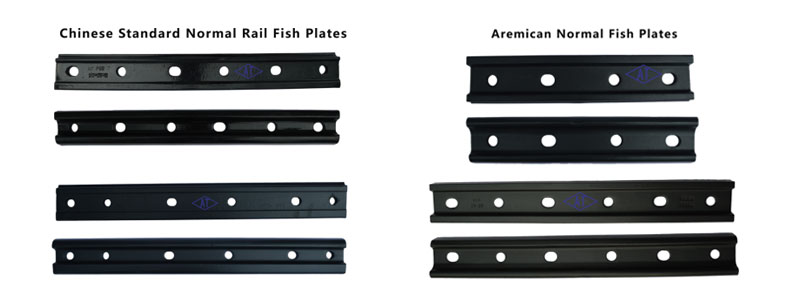

Fish plate is a kind of connection fastener used for connection between rail and track. The use of fish plate is more labor-saving and labor-saving than the rail butt welding technology, and the installation is simple and quick. The fish plate and fish bolt are used together. Normal rail fish plates are widely used to connect different sections of normal rails together while maintaining gauge and keeping the alignment of rail surfaces. Generally, normal rail fish plates has four holes or six holes. Compromise fish plates are used to connect abnormal rails, which have two separate pieces— one piece installed in the outside of rails, another installed in the inside of rails. Compromise fish plates are specially designed to smoothly match the gauge-head face of two rails, one set compromise fish plates are consisted of four bars. Joggled Fish Plates, also called bugled fish plates, which are exclusively used as emergency repairing of cracked rails for joining with clamp assembly to suit various rail sections. Joggled fishplates can repair cracked rails quickly, allowing continued movements through the section at a reduced line speed.
